NVMI / COMPARTMENT-BASED STORAGE

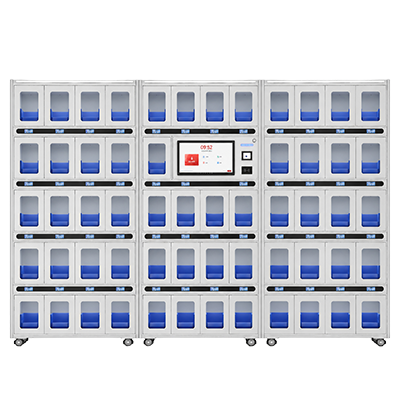

NVMI-G Compartment Smart Cabinet
Separate materials. Connected inventory.
NVMI-G combines individually controlled compartments with weight-sensing modules and the NVMI management platform. A main cabinet and expansion cabinets let you build a layout around your material storage and access needs.
Individual compartments. One connected workflow.
HOW IT WORKS
The right material.
The authorized compartment.
Keep materials separated and connect each collection with the access and inventory workflow.
Identify and select
The user verifies their identity and selects the material through the configured cabinet workflow.
Access the compartment
The designated compartment opens for authorized collection. Separate storage helps keep different materials organized.
Record the movement
Weight-sensing modules capture material changes, supporting inventory updates, consumption records and replenishment planning.
MODULAR CABINET LAYOUT
weight-sensing modules
weight-sensing modules
Layout concept. Final compartment arrangement is confirmed for the project.
HARDWARE + SOFTWARE
Start with a main cabinet.
Expand as needs grow.
Main + expansion layout
Each main cabinet provides the control center and supports up to nine expansion cabinets to accommodate your storage requirements.
Independent compartments
Separate materials into assigned compartments and manage access according to your operating requirements.
Inventory & consumption
Review stock levels and material-use records through the connected NVMI platform.
Replenishment visibility
Use low-stock thresholds and inventory information to plan restocking. ERP or WMS interfaces are reviewed for your project.
WHERE NVMI-G FITS
Separation where
it matters.
Suitable materials depend on their size, weight and handling requirements. Our team can help review the compartment arrangement.
Dedicated storage
Give selected components or controlled-use consumables their own compartment and access rules.
Organized MRO supplies
Separate maintenance parts and suitable consumables while keeping inventory information available to the team.
Authorized collection
Support self-service material collection for authorized teams at shared stores or line-side supply points.
TECHNICAL DETAILS
NVMI-G
at a glance.
Each main cabinet has 17 weight-sensing modules. Each expansion cabinet has 20 weight-sensing modules. Each main cabinet supports up to 9 expansion cabinets.
Dimensions are shown as L × W × H.
| Model | NVMI-G Compartment Smart Cabinet |
|---|---|
| Main cabinet dimensions | 830 × 600 × 1900 mm |
| Expansion cabinet dimensions | 830 × 600 × 1900 mm |
| Main cabinet sensing modules | 17 |
| Expansion cabinet sensing modules | 20 per cabinet |
| Maximum expansion per main cabinet | 9 expansion cabinets |
| Standard sensing accuracy | 1 g |
| Control center | 15.6-inch touchscreen |
| Smart-unit display | 2.9-inch display |
| Connectivity | 4G IoT module |
| Application | Android IoT application |
| Access management | Identity and permission recognition |
Choose the layout around your materials
Review material dimensions, unit weights, SKU count and access permissions before selecting a cabinet combination. Compartment arrangement and system interfaces are confirmed for the project.
LET'S PLAN YOUR CONFIGURATION
Plan a compartment layout
that fits your operation.
Share your material list, access requirements and available space. Our team will help you review the main cabinet and expansion layout.
